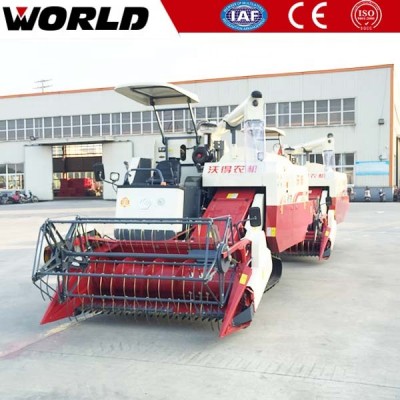

The 4LZ-5 full-feed crawler rice combine mainly harvest rice, both wheat and rape, and at the same time, corn seeds can be harvested by changing the maize cutting table. Which can complete cutting, threshing, separation, cleaning and other operations all at one time.
It has the advantage of efficient threshing and less impurities. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms.
Model | / | 4LZ-5 |
Type | / | Rice & Wheat combine harvester |
Cutting table width | mm | 2000/2200 |
Feeding volume | kg/s | 5 |
Working efficiency | hec/h | 0.27~0.85 |
Dimension(L*W*H) | mm | 5450×2520×2870 |
Weight | kg | 3400 |
Min. ground clearance | mm | 330 |
Fuel Consumption | kg/hec | ≤35 |
Engine Power | / | 102 HP |
Threshing Drum | / | Longitudinal axial flow type |
Rubber Track | / | 90mm×51×400mm (450/500/550mm optional) |
Unloading type | / | All directions discharger auger |
Grain tank capacity | M³ | 1.4 |
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
Product quality protection
