Product Description
With the above advantages, this machine has very good applicability, can be used for liquid and granular fertilizer spraying for weeding, insect killing, sterilization, leaf fertilizing, etc. For wet and dry crops and vegetable safely and reliably.
Although this machine is well-designed, its performance and efficiency are still closely related to the user’s operation and maintenance. Please read this manual before using and strictly follow it.
Parameter

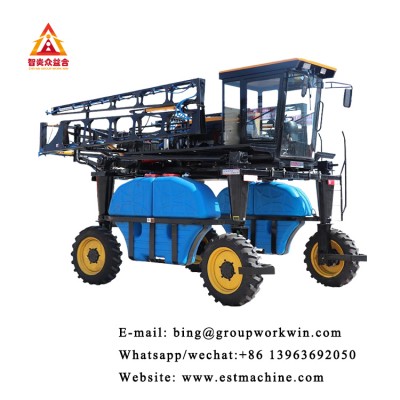

| Model | 3WPZ-1200G self-propelled boom sprayer | Pump type | Plunger pump |
| Engine model | 4L68 (Changchai) turbocharged diesel engine | Pump model | OS-5200 |
| Power / speed | 53hp 2400r/min | Pump pressure | 0-45kgf/cm² |
| Displacement level | China III | Pump flow | 200-240L/min |
| Gear | Forward gear 4,reverse gear 1 | Pump speed | 600-800r/min |
| Drive mode | Four-wheel drive | Tank capacity | 1500L |
| Steering mode | Hydraulic steering | Spray height | 0.5-3.0m |
| Mixing way | Circulating water mixing | Nozzle model | No.3 |
| Folding way | Hydraulic folding | Spray angle | 110 ° |
| Boom | 16m(customizable) | Nozzle flow | 1.2L/min |
| Ground clearance | 1.8m(customizable) | System work pressure | 0.3-0.5Mpa |
| Wheel track | 1.95-2.6m(adjustable) | 3 filtration system | Tank inlet, pump inlet, nozzle |
| Operating efficiency | 21-30acres / hour | Battery | 12V/120AH |
| Walking speed | ≤25km/h | Front tire model | Tractor tires 9.5-24 |
| Overall dimension | 5800mm x 2900mm x 3700mm | Rear tire model | Tractor tires 9.5-24 |
| Weight | 3811kg | Water tank | 15L |
Detailed description
1. Matching power: 75 horsepower, high-grade speed: 20 km/h, hydraulic form: six-cylinder diaphragm pump
2.Structural dimensions: (mm) 4100 x 2200 x 3100 (transport status), 4100 x 10000 x 3100 (working status)
3. Whole machine weight: (kg) 5000 (no load)
4. Drug box volume: (L) 2800
5. Spray amplitude: (m) 21
6. Spray rod type: five segments, folded manually, spray width 21m (can be closed in segments)
7. Spray rod height: (mm) 500-1850 adjustable
8. Rear wheel pitch (mm) 1900-2600 adjustable 12. Working pressure: (MPa) 0.2-0.5 adjustable
9. Flow of liquid pump: (L/min) 80-100
Active Cereals
Demonstration
Production workshop
Packaging and transportation
Company information
Customer visit
certificate
advantage
1. Self-propelled chemical boom crop sprayer uses an whole LCD dashboard make the operating clear.
2. The machine has excellent work performance. Independent PTO, which provides power for the fertilizer applicator, can also be equipped with a 300L large capacity manure spreader with a spread of up to 12 meters.
3. The front and rear wheels have the same trajectory.
4. There is less trampling of crops and more than one machine can be used to achieve plant protection and fertilization.
FAQ
1.Why chose you?
a.We are manufacturer, our products have excellent quality and competitive price.
b.We have good after-sales services,you can find us at per 24 hours.
c.Strictly testing and checking before shipping.
2.How to deal the order?
a.Payment terms: T/T 30% as deposit, and 70% before delivery.
b.We'll show you the photos of the products and packages before you pay the balance.
3.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
4.What is your warranty policy?
We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
5.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefit.
b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
d. how many units you want to purchase in your first order
Product quality protection
