Product Overview:

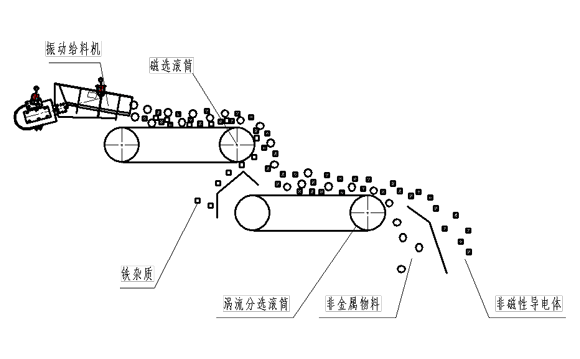

Eccentric eddy current sorter is a kind of non-ferrous metal recovery equipment with eccentric high speed magnetic roll for fine copper and aluminium recovery. It has many independent patent rights and core equipment of resource recycling industry. The eccentric eddy current separator installs eccentric magnetic rollers inside the non-conductive drum (adjustable position). The magnetic force concentrates on the top of the drum, and the eddy current force concentrates on the separation area at the end of the belt. At the same time, the belt is prevented from being damaged by magnetic materials. Compared with concentric eddy current separator, it is more suitable for separating materials with smaller surface area or lighter surface area.

Technical characteristics

The eccentric magnetic roll can effectively prevent the magnetic material from entering the surface of the magnetic roll, effectively protect the magnetic roll and running belt.

_For lighter and smaller surface area materials, the separation effect is better than concentric.

Intelligent touch control cabinet system, frequency conversion control, more stable and reliable operation.

PLC programmable control, one key start, simple operation.

_Bearings are imported bearings with long service life and good operation.

_The magnetic roll adopts effective magnetic system protection to prevent the magnetic system from falling off at high speed.

_The whole machine adopts special technology and is made precisely, with minimal noise and vibration when the equipment is running.

Installation of a variety of detection and alarm devices, real-time monitoring of the operation of each key component.
