Quick Details

Place of origin: Zhejiang,China (Mainland)

Brand name: other

Model number: Customized

Shaping Mode: Plastic injection mould

Mould material: P20

Mould base: C45 steel, Tuofang customized

Cavity no:1

Hardness of cavity, core: HRC 30-34

Hardness of wear parts: HRC 50-60

Ejection system: Ejectior pins

Runner: hot runner

Design software: UG NX

Plastic material: PP

Mould life:300000 shots

Delivery time: 65 days for first test sample, 7 days for prepare shipping after sample                             approved

Manufacting flow of moulds

1. RFQ

   Get the sample or drawing from customer, analyze and quote as per customer requests, give some professional suggestions to help customer improve the product.

2. Negotiation

   Discuss about the mould steel, delivery time, payment term and so on.

3. Place an order

   Customer confirms the plastic material, injection machine spec and other details, we start make the design.

4. Mould design

   Make the mould design on the basis of confirmed product design, accordingly customer machine sprc and other requests.

5. Mould tooling

   Start the mould tooling after mould design confirmed. ( Cut steel, CNC machining, polishing, testing)

6. Mould processing

   Mould process photo or video update to customer each 10 days

7. Test sample

   T1: checking if mould working corrects, if the dimension,weight, wall thickness meet customer request. If everything is Ok, send the sample to customer approve.

8. Delivery

   Once sample approved, will ship the moulds within 7 days after get customer shipping instruction.

9. Shipping

   By Sea-Nearest port: Ningbo or Shanghai

   By Air-Nearest port: Shanghai or Hangzhou

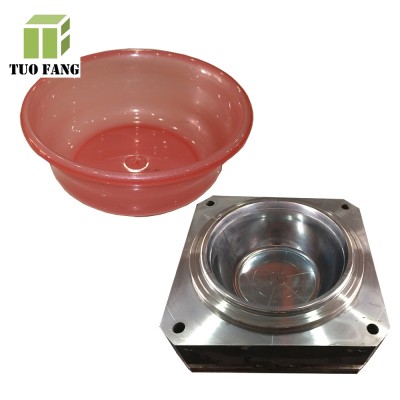

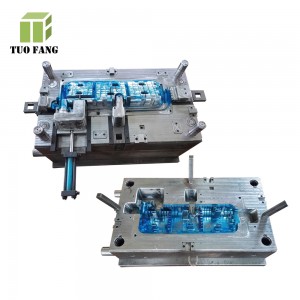

Mould Show

Our service

Pre-sale service:
The good sale person for professional and promptly communication
In-sale service:
Our designer teams will support customer R&D,make the product and mould design as per customer request, do the modification and give the professional suggestion for improve the product. Update the mould process to customer
After-sale service:
Suggest the mould maintance, If the mould have quality problem during our guarantee period, will freely supply the wear part for replace the broken piece and technique support; also if you have any issue in using our moulds, we provide the  professional suggestions and helps

Packing & Delivery

We will prepare the some wear parts, like spring, ejector pins, cooling conector, eyeblot.pack with the mould

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 40-60 days for 1st sample. or it is 60-90 days for big moulds

Q: Do you provide samples ? is it free or extra ?

A: Yes, we will send the smaple to customer, and will part two time freight fee.

Q: What is your terms of payment ?

A: 50% T/T in advance ,balance before shippment.
