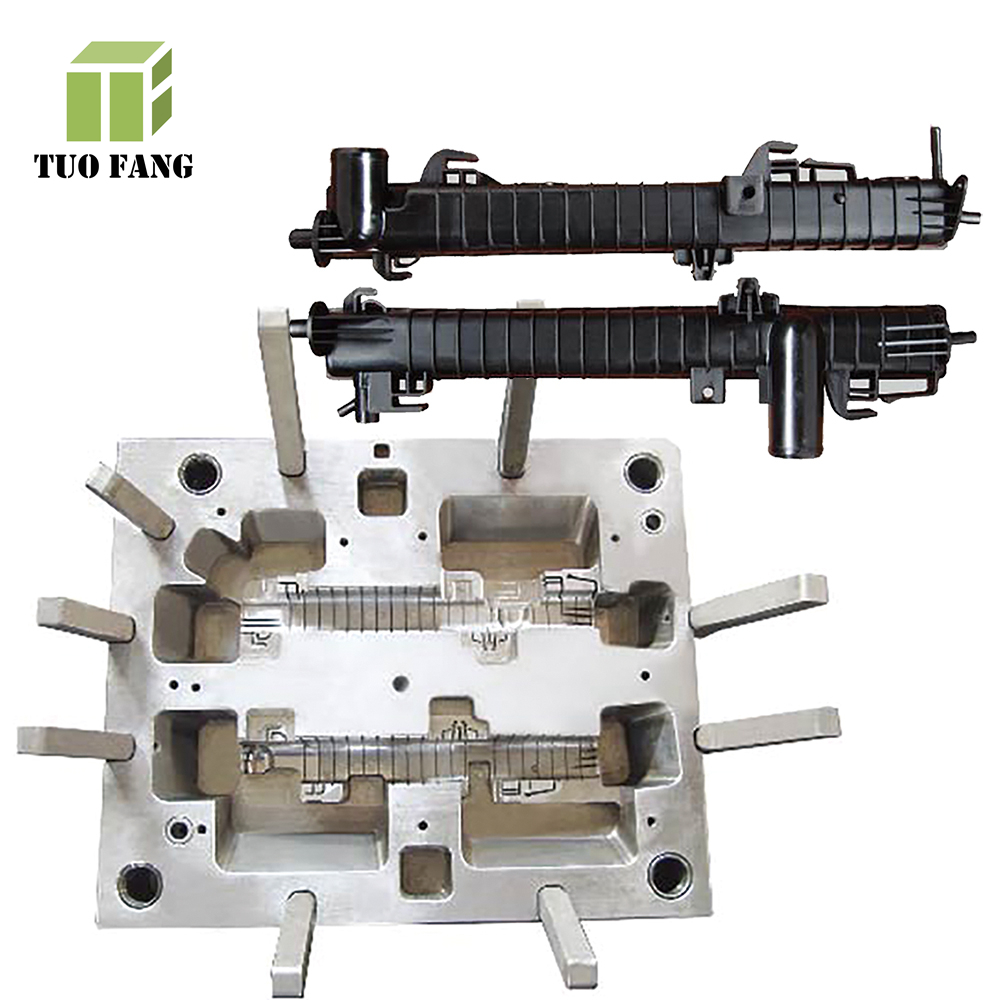

auto radiator water tank mould, truck radiator plastic water tank mould

Quick Details

Mould Name: auto radiator water tank mould, truck radiator plastic water tank mould

Mould Material: P20

Mould base: C45 Steel,Tuofang customeized

Cavity No.: 1

Hardness of cavity,core: HRC 30-34

Hardness of wear parts: HRC 50-60

Ejection system: Ejector pin

Runner: hot runner

Desin software: UG NX

Plastic material: PA66+30%GF

Mould Life: 300000

Delivery time: 70 days for first test sample, 7 days for prepare shipping after sample approved

manufacting Flow of mould

1.RFQ

Get the sample or drawing from customer, analyze and quote as per customer requests, give some professional suggestions to help customer improve the product.

2.Negotiation

Discuss about the mould steel,delivery time, payment term and so on.

3.Place an order

Customer confirms the plastic material, injection machine spec and other details, we start make the design

4.Mould design

Make the mould design on the basis of confirmed product design,accordingly customer machine spec and other requests.

5.Mould tooling

Start the mould tooling after mould design confirmed.(Cut steel, CNC maching, polishing, testing)

6.Mould processing

Mould process photo or video update to customer each 10 days

7. Test sample

T1: checking if mould working corrects, if the dimension, weight, wall thickness meet customer request. If everything is OK, send the sample to customer approve

8.Delivery

Once sample approved, will ship the moulds within 7 days after get customer shipping instruction

9.Shipping

By Sea-Nearest port: Ningbo or Shanghai

By Air-Nearest port: Shanghai or Hangzhou

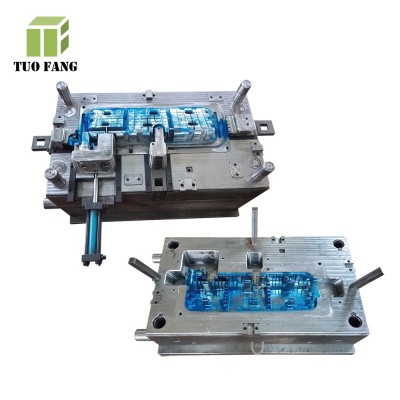

Mould show


Our Service

Pre-sale service:
The good sale person for professional and promptly communication
In-sale service:
Our designer teams will support customer R&D,make the product and mould design as per customer request, do the modification and give the professional suggestion for improve the product. Update the mould process to customer
After-sale service:
Suggest the mould maintance, If the mould have quality problem during our guarantee period, will freely supply the wear part for replace the broken piece and technique support; also if you have any issue in using our moulds, we provide the professional suggestions and helps

Packing & delivery

We will prepare the some wear parts, like spring, ejector pins, cooling conector, eyeblot.pack with the mould
