Shrimp puffed food chocolate packing machine

sugar and cotton, grains, seeds packing machine

specification

This machine is suitable for potato chips, chips, crispy rice, shrimp, etc. puffed food,

chocolate, pistachio, almond, red dates, dried fruits, peanuts, melon seeds, biscuits, pet food,

fish balls, quick-frozen dumplings, candy, black fungus, dried mushrooms, sugar and cotton,

grains, seeds, feed and other materials Jingzhun packaging.

feature

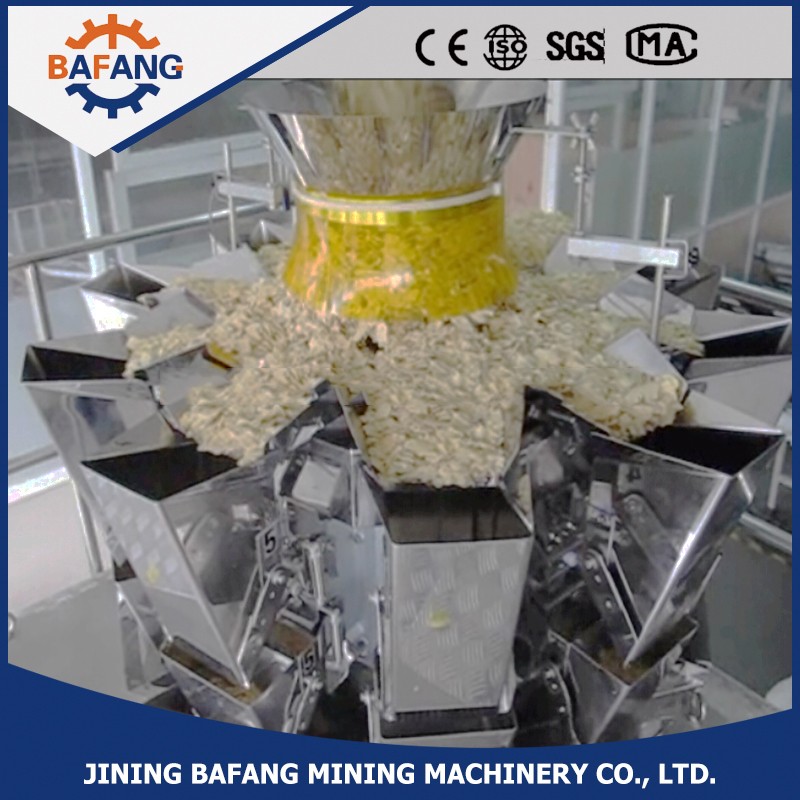

1,High precision digital sensor, equipped with ten buckets, so that accurate measurement can be

achieved instantaneously;

2,Microcomputer control system, the use of double vibration, advanced technology, easy to

operate;

3,Measuring bucket is easy to assemble and disassemble, quick and easy, easy to clean and

maintain.

4, low input, high return, high speed, high efficiency.

5 ,imported PLC full computer control system, man-machine interface, large display touch

screen, easy to operate.

applicance

Packing range: This machine is suitable for potato chips, chips, crispy rice, shrimp, etc.

puffed food, chocolate, pistachio, almond, red dates, dried fruits, peanuts, melon seeds,

biscuits, pet food, fish balls, quick-frozen dumplings, candy, black fungus, dried mushrooms,

sugar and cotton, grains, seeds, feed and other materials Jingzhun packaging.

parameter

Item	Content
packing speed	45 bag/min,it is according to quality of wrapping and supplies
Accuracy	≤±3G
Bag size	(L)60-300mm (W)90-200mm
Film width	420mm
Bag type	Pack with film, upper seal, lower seal and back seal by automatic bag making machine.
Film thickness	0.06-0.08mm ,0.07-0.08 is bet 0.06-0.08mm, the best is 0.07-0.08mm
Package material	BOPP/CPP,PET/AL/PE etc. thermal composite material., likeBOPP/CPP, PET/AL/PE etc
Air consumption	0.8Mpa 0.8m3/min
Total powder	head scale(2KW)+main body(4KW)+Z shape conveyor(1.KW)+finished product conveyor (0.045KW)=7.045KW
Voltage	Four wire three phase 380V 50HZ
Air compressor	>=1 m3

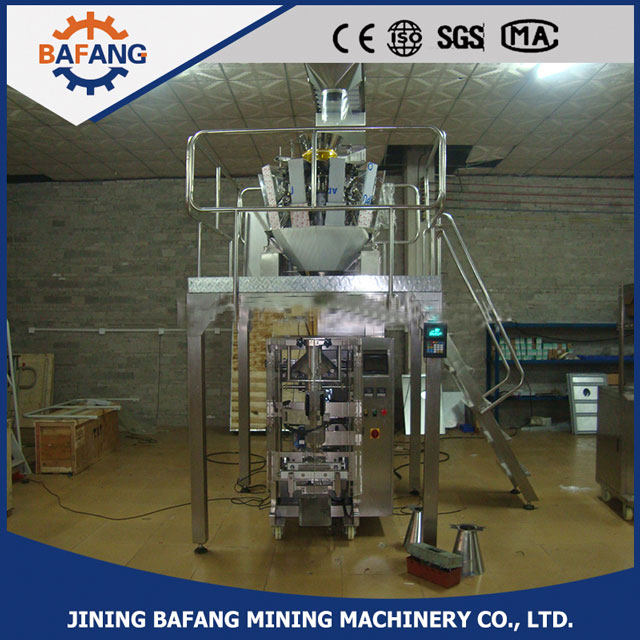

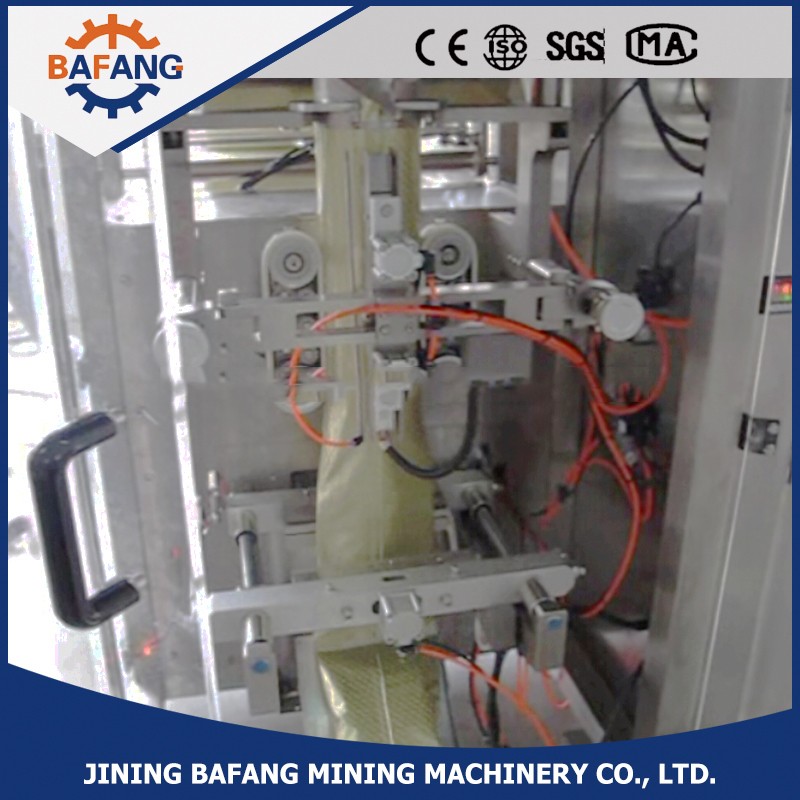

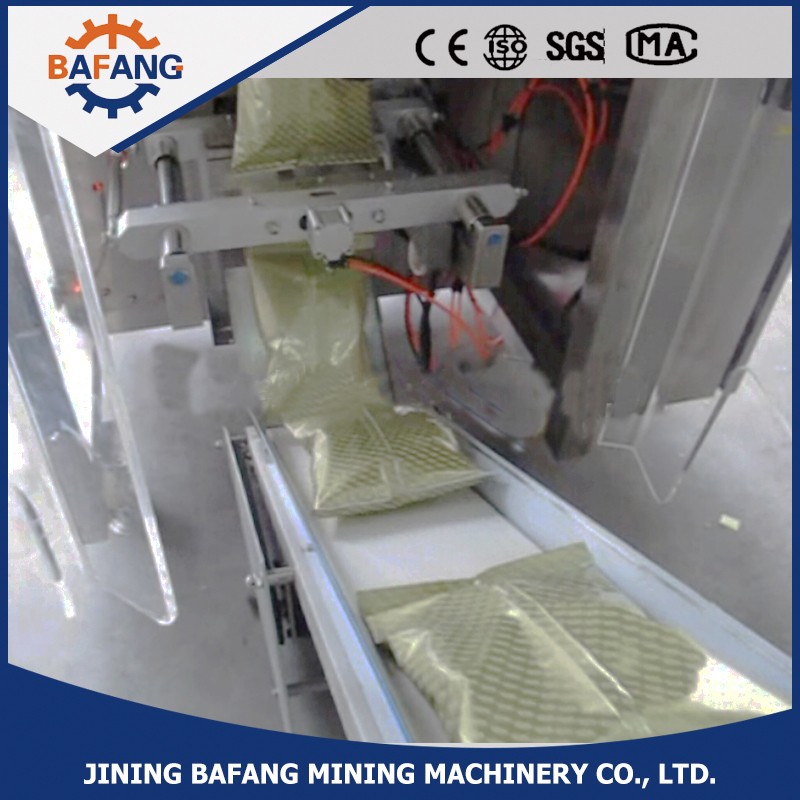

detailed picture
