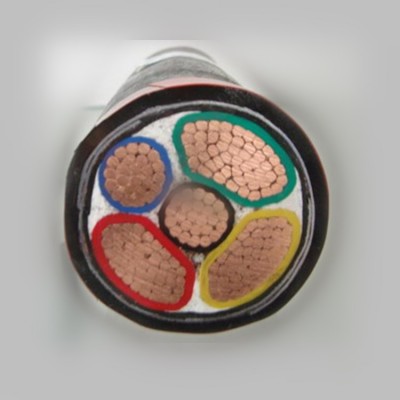

Product Description
Standard:
0.6/1kV PVC Insulated Power Cables conform to the Standard GB/T12706.1-2008,
and the same time is also manufactured according to the standard of IEC, English, Germany and America.
Installation and operation condition of cable
1. In the air
The distance between cable centers of singal-core cables laid in parallel:
cross-sectional area of conductor≤185mm2: 2 times of the cable diameter
cross-sectional area of conductor≥240mm2: 90mm
2. Directly in the ground
Th single-core cables are installed separately, the distance between the cable center is 2 times of the cable diameter.
Soil temperature:25℃
Max. Continous operating temperature of conductor:90℃
Thermal resistivity of soil:1.0℃.m/W
Depth of direct-buried:0.7m

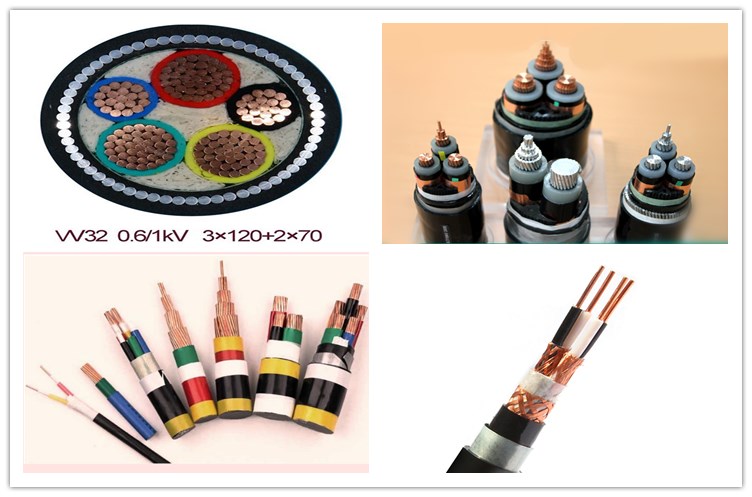

Type and designation of cable
Type | Name | Application |
VV | Copper conductor, PVC insulated, PVC sheathed electrical cable | For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable in magnetic duct is not permissible. |
VLV | Aluminum conductor, PVC insulated, PVC sheathed electrical cable |
VY | Copper conductor, PVC insulated, PE sheathed electrical cable |
VLY | Aluminum conductor, PVC insulated, PE sheathed electrical cable |
VV22 | Copper conductor, PVC insulated, steel tape armoured, PVC sheathed electrical cable | For laying indoors, in tunnel, in cable trench or direct buried, able to bear external mechanical forces, bue unable to bear large pulling force. |
VLV22 | Aluminum conductor, PVC insulated, steel tape armoured, PVC sheathed electrical cable |
VV23 | Copper conductor, PVC insulated, steel tape armoured, PE sheathed electrical cable |
VLV23 | Aluminum conductor, PVC insulated, steel tape armoured, PE sheathed electrical cable |
VV32 | Copper conductor, PVC insulated, fine steel wire armoured, PVC sheathed electrical cable | For laying indoors, in tunnel, in cable trencH, well or direct buried, able to bear external mechanical forces and determinate pulling force. |
VLV32 | Aluminum conductor, PVC insulated, fine steel wire armoured, PVC sheathed electrical cable |
VV33 | Copper conductor, PVC insulated, fine steel wire armoured, PE sheathed electrical cable |
VLV33 | Aluminum conductor, PVC insulated, fine steel wire armoured, PE sheathed electrical cable |

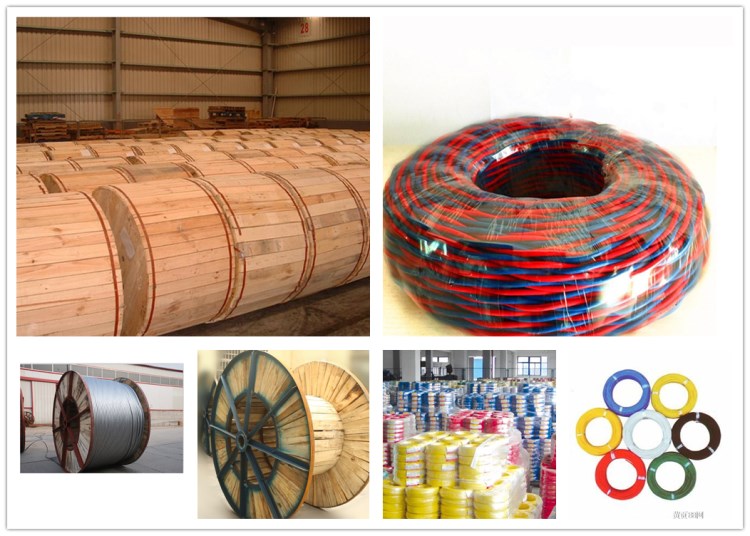

Packaging & Shipping
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.

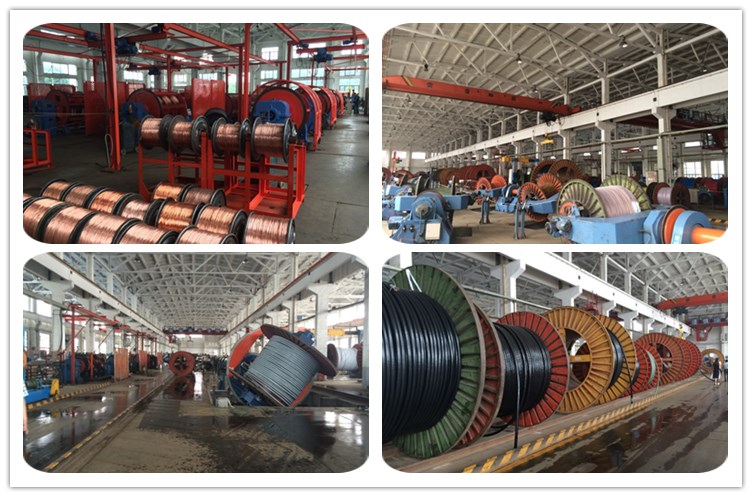

Company Information
English
Español
Русский
עברית
Français

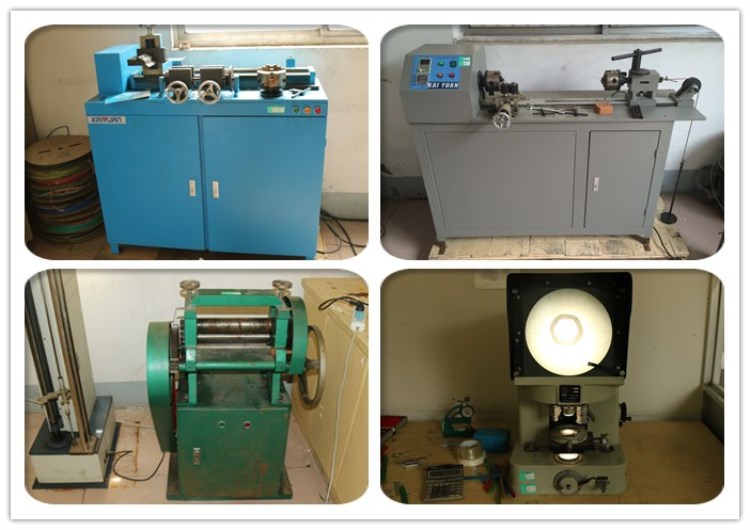

Product quality protection
